Brake Shoe Identification Guide

Select by Shoe Diameter;

9" Diameter                   15" Diameter

10" Diameter                 15 - 1/8" Diameter

12" Diameter                 16 - 1/4" Diameter

12 - 1/4" Diameter         16 - 1/2" Diameter

14 - 1/2" Diameter         18" Diameter

14 1/2" Diameter



Arvin Meritor
W Series Type 1&3
___________________________________________________________________________
Shoe Width FMSI No. Euclid
Hardware Kit No.

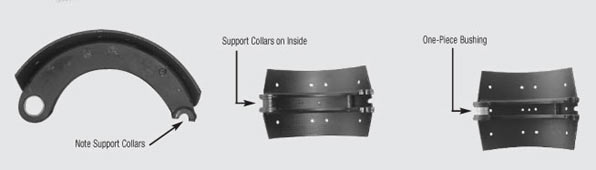

8" 4541C E 10867    1-Piece Bushing
10" 4592AFB E 10869


Arvin Meritor
W Series Brake • Type 2 • Only Available In 10"
____________________________________________
Shoe Width FMSI No. Euclid
Hardware Kit No.		 TBS No.
10" 4592A E10870 BK - 145R


Arvin Meritor
W Series Brake
____________________________________________
Shoe Width FMSI No. Euclid
Hardware Kit No.		 TBS No.
5" 4398D E10841 or E10866 BK - 145FM
6" 4228F E10841 or E10866 BK - 145FM
